Lenovo Visio collection:
Lenovo's official Visio collection for their products.
|
|
|
Collection News |
26-Jun-2024
Lenovo-ThinkSystem-Servers.zip
Lenovo-ThinkSystem.vssx
- Added ThinkSystem SR250 V3, SR950 V3, ST50 V3 and ST250 V3
- Moved older ThinkSystem (V1) models to Lenovo-ThinkSystem-Classic.vssx (see below)
Lenovo-Classic.zip
Lenovo-ThinkSystem-Classic.vssx - *New File*
- Added ThinkSystem SR150, SR250, SR550, SR570, SR590, SR630, SR650, SR670, SR850, SR850P, SR860, ST50 and ST250
Note: All Lenovo Stencils are Visio 2013 and newer file format.
|
Archived Lenovo News |
|
Current Stencils (Created by VSD Grafx Inc) |
click picture for preview |

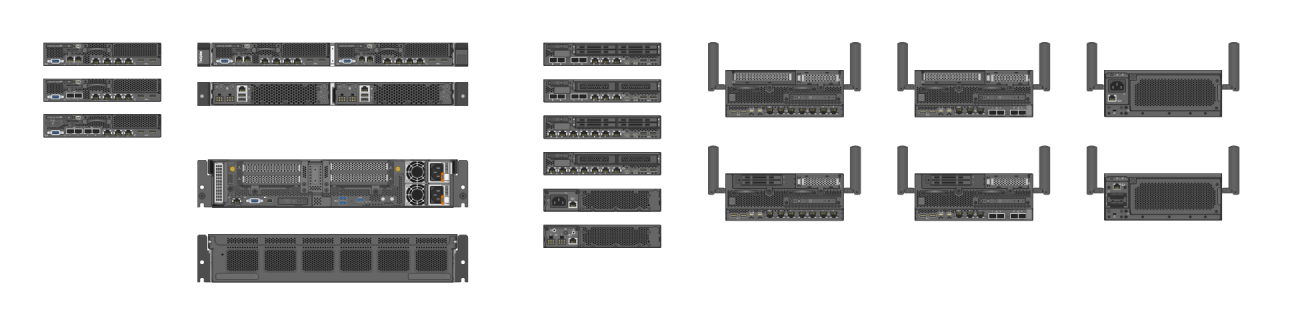

Lenovo-ThinkEdge |
2D views of Lenovo ThinkEdge Servers including SE350, SE350 V2, SE360 V2 and SE450 |
2,301KB
25-Jul-23 |
![Click for large view Click for large view](images/lenovo-thinkedge-preview.png) |
Lenovo-ThinkSystem-Servers |
2D views of Lenovo ThinkSystem Servers including NeXtScale, nx360, DW612S, SD530, SD630 V2, SD650 V2, SD650 V3, SD650-I V3, SD650-N V3, SD665 V3, SD665-N V3, SR250 V2, SR250 V3, SR530, SR630 V2, SR630 V3, SR635, SR635 V3, SR645, SR645 V3, SR650 V2, SR650 V3, SR655, SR655 V3, SR665, SR665 V3, SR670 V2, SR675 V3, SR850 V2, SR850 V3, SR860 V2, SR860 V3, SR950, SR950 V3, ST50 V2, ST50 V3, ST250 V2, ST250 V3, ST550, ST650 V2 and ST650 V3 |
27,278KB
26-Jun-24 |
![Click for large view Click for large view](images/lenovo-thinksystem-servers-preview.png) |
Lenovo-ThinkSystem-Storage |
2D views of Lenovo ThinkSystem Storage including DE Series and DM Series |
4,483KB
05-Oct-21 |
![Click for large view Click for large view](images/lenovo-thinksystem-storage-preview.png) |
Lenovo-FlexSystem |
2D views of Lenovo FlexSystem products |
1,766KB
05-Oct-21 |
![Click for large view Click for large view](images/lenovo-flexsystem-preview.png) |
Lenovo-Networking |
2D views of Lenovo RackSwitch products |
2,180KB
10-Jul-17 |
![Click for large view Click for large view](images/lenovo-rackswitch-preview.png) |
Lenovo-Storage |
2D views of Lenovo Storage products including DS-Series, S-Series, V-Series and SAN Switches/Directors |
8,905KB
25-Jul-23 |
![Click for large view Click for large view](images/lenovo-storage-preview.png) |
Lenovo-Systemx |
2D views of Lenovo System x products including System x3250 M6, x3500 M5, x3550 M5, x3650 M5, x3850 X6 and x3950 X6 |
3,285KB
05-Mar-18 |
![Click for large view Click for large view](images/lenovo-systemx-preview.png) |
Lenovo-ThinkAgile |
2D views of Lenovo ThinkAgile System products including CP Series, HX1000, HX2000, HX3000, HX5000 and HX7000 |
2,572KB
17-Oct-18 |
![Click for large view Click for large view](images/lenovo-thinkagile-preview.png) |
Lenovo-ThinkServer |
2D views of Lenovo ThinkServer Servers including RD350, RD450, RD550, RD650, SD350 and TD350 |
2,664KB
03-Jan-17 |
![Click for large view Click for large view](images/lenovo-thinkserver-preview.png) |
|
Classic Stencils |
Lenovo-Classic |
Older shapes of 2D views of Lenovo NeXtScale, System x, Converged HX, ThinkServer (v3) and ThinkSystem (v1) products |
8,893KB
26-Jun-24 |
![Click for large view Click for large view](images/lenovo-classic-preview.png) |
ThinkServer_Classic |
Old (2012) shapes of 2D and 3D views of Lenovo ThinkServer products including RD230, RD240, RD330, RD430, RD530, RD630, TD230, TD330, TS130 and TS430 |
1,197KB
05-Nov-12 |
![Click for large view Click for large view](images/lenovo_preview.png) |
|
Collection is compatible with Visio version 2013 and up. Stencil folder is My Documents\My Shapes\ (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration. Use our
templates instead, they have all the right settings to make Visio much easier. |
|
|
