Nexsan Coraid Visio collection: Coraid's official Visio collection for their Virtualization, Cloud, and Big Data storage products.
Collection created by Coraid, Inc. Questions can be sent to VisioCafe
  Collection News
30-Apr-2014
      Coraid - Additions and updates throughout the collection
15-Apr-2014
      Coraid launches their new Visio collection with stencils for their Ethernet storage products
  Current Stencils
.zip Coraid-EtherCloud Coraid EtherCloud products including EtherCloud GM, EtherCloud EM, and EtherCloud Storage Manager (ESM)
3,866KB

30-Apr-2014
Click for large view

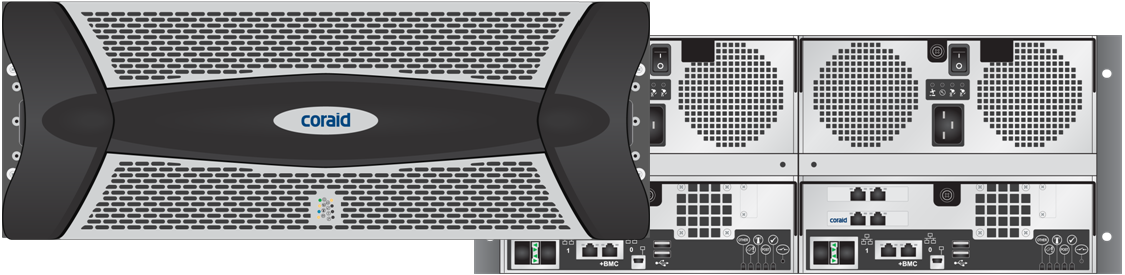

.zip Coraid-EtherDrive-EX Front and rear views of EtherDrive EX unified storage products
1,544KB

30-Apr-2014
Click for large view
.zip Coraid-EtherDrive-SRX Front and rear views of EtherDrive SRX scalable block storage products
19,161KB

30-Apr-2014
Click for large view
.zip Coraid-EtherDrive-ZX Front and rear views of EtherDrive ZX high-performance file storage products
12,606KB

30-Apr-2014
Click for large view

Collection is compatible with Visio versions 2003 to 2013.  Stencil folder is My Documents\My Shapes\   (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration.  Use our templates instead, they have all the right settings to make Visio much easier.
